Re: Paradise.....more found than lost!

Posted: Sat May 18, 2019 9:54 am
by karma67
i like that too!

Re: Paradise.....more found than lost!

Posted: Sat May 18, 2019 12:02 pm
by YNWaN
And now with an extra cover / ignore the fact it is orange :).


Re: Paradise.....more found than lost!

Posted: Sun May 19, 2019 1:53 am
by sq225917
That's mint good effort missing those test point pins.

Re: Paradise.....more found than lost!

Posted: Mon May 20, 2019 4:14 pm
by YNWaN
The less curvy version I think I prefer:



Re: Paradise.....more found than lost!

Posted: Mon May 20, 2019 5:02 pm
by YNWaN
People will be able to choose which style they would like - as I now have files for both it makes no difference.

Re: Paradise.....more found than lost!

Posted: Mon May 20, 2019 6:03 pm
by sq225917
Yeh the all black is good

Re: Paradise.....more found than lost!

Posted: Mon May 20, 2019 6:44 pm
by YNWaN
I’ve run out of black filament - the ones above are actually orange, but sprayed black. I’ve ordered a spool of black filament though, should be here in a day or so.

Oh, the real ones will be made to a slightly higher resolution too - I did these for speed.

Re: Paradise.....more found than lost!

Posted: Mon May 20, 2019 11:06 pm
by sq225917
Blimey, can't wait to see the post ones.

Re: Paradise.....more found than lost!

Posted: Mon May 20, 2019 11:45 pm
by YNWaN
I’ve finished with the board now so I’ll drop it back to yours tomorrow evening Si - if that suits you?

I might try increasing the chamfer on the edges of the squarer design and look at what fonts are available for the PARADISE logo.

Oh, I need to get that (final) resistor ordered too (well, two of them ordered).

Re: Paradise.....more found than lost!

Posted: Tue May 21, 2019 7:37 pm
by YNWaN

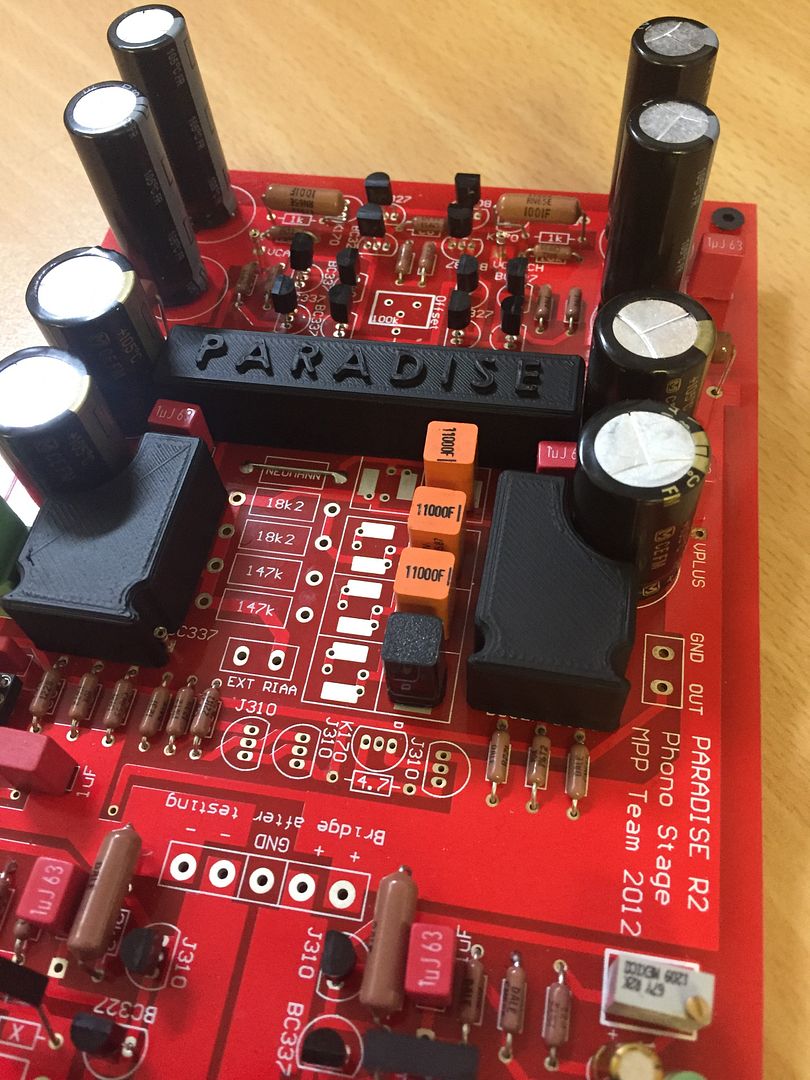

This is it for the squarer style - unfortunately I’ve struggled to photograph them very well. I’ve slightly increased the chamfer on the edges and these (thanks to Amazon Prime) are in black filament (rather than just sprayed black) - and include the same PARADISE logo lettering I designed for the front panels :). Anyway, I think nine prototypes is sufficient for a part you will seldom, if ever, see :) - so I’m stopping now.

I’ll print some of the rounder versions tomorrow, as an example.
